Rockchip rk3399 Core Board 4K RP-BOX-RK3399

Model number: RP-BOX-RK3399 2G+16G

Brand:

Encapsulation: SMT

Inventory: 1000

Price: $95.00

Add to shopping cart

Product details
Quote Now

General Description

Features

General Parameters

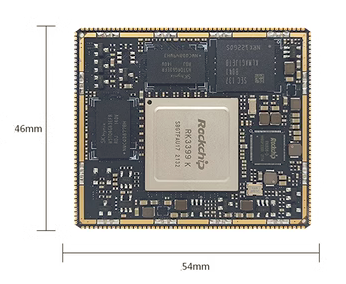

Dimension	54mmL46mmW3.2mmH
CPU	Rockchip RK3399 Six-Core A72 Dual + A53 Quad
GPU	Mali T860 MP4
Memory	LPDDR4 2GB (4GB optional)
Storage	EMMC 5.1 16GB (8GB/32GB/64GB optional)
Power Management	RK808-D
Supply Voltage	5V 2A
Operating System	Andriod7.1 / 8.1 / Ubuntu16.04 / Linux+QT
Operating Temperature	-10°C to +75°C

Absolute Maximum Ratings

Supply Input Voltage range	1.8V to 6.0 V
Input voltage	-0.3V to VDD+0.3V
Lead Temperature	260℃
Storage Temperature Range	−40℃ to 100℃
Operation Junction Temperature Range
Operation Ambient Temperature Range	−10℃ to 75℃
Maximum Junction Temperature Range
Maximum Power Dissipation (PD,TA<40°C)	10W
Thermal resistance (junction to ambient)	45℃/W

Electrical Characteristics

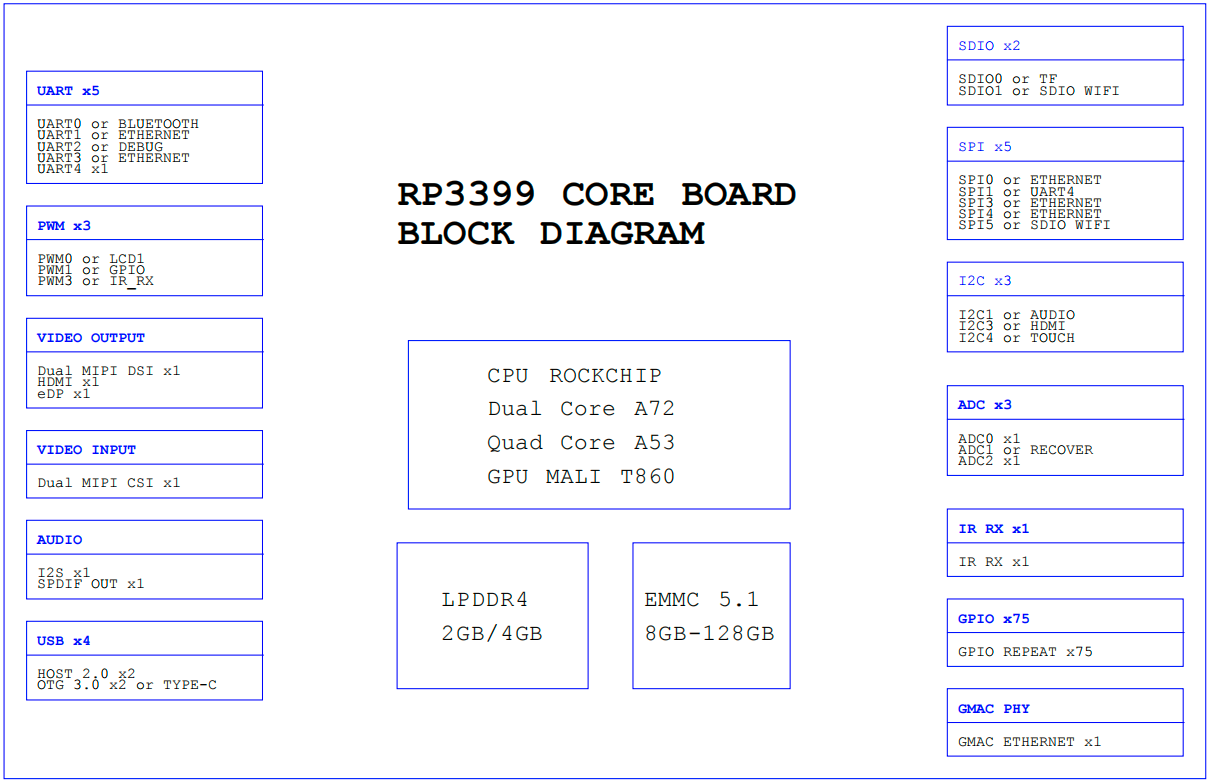

Functional Block Diagram

Interface Description

HDMI	HDMI Ouptut Support 4K/1080P Show
MIPI DSI	support 8Lane, Support 2K/4K
MIPI CSI	2 x MIPI CSI Support Two 1300W
I2S	1 x I2S Interface
USB2.0	2 x USB2.0
USB3.0	2 x USB3.0 or 1 x TYPE-C
TYPE-C	1 x TYPE-C
以太网	PHY Interface
UART	5 x UART
SPI	5 x SPI
I2C	3 x I2C
PWM	3 x PWM
TF	1 x TF
SDIO	1 x SDIO Interface
GPIO	75 x GPIO
ADC	3 x ADC Interface

Functional Pin Description

Pin	Name	IO Voltage	State	Multiplex Function
1	HDMI_TX1N		Output	HDMI_TX1N
2	HDMI_TX1P		Output	HDMI_TX1P
3	HDMI_TX2N		Output	HDMI_TX2N
4	HDMI_TX2P		Output	HDMI_TX2P
5	GND			GND
6	I2C1_SDA	IO=1V8	Input-Output	GPIO4_A1/I2C1_SDA_u
7	I2C1_SCL	IO=1V8	Output	GPIO4_A2/I2C1_SCL_u
8	I2S_CLK	IO=1V8	Output	GPIO4_A0/I2S_CLK_d
9	I2S0_SCLK	IO=1V8	Output	GPIO3_D0/I2S0_SCLK_d
10	I2S0_SDO0	IO=1V8	Output	GPIO3_D7/I2S0_SDO0_d
11	I2S0_LRCK_TX	IO=1V8	Output	GPIO3_D2/I2S0_LRCK_TX_d
12	I2S0_LRCK_RX	IO=1V8	Input	GPIO3_D1/I2S0_LRCK_RX_d
13	I2S0_SDI0	IO=1V8	Input-Output	GPIO3_D3/I2S0_SDI0_d
14	HP_DET_H	IO=3V3	Input	GPIO4_D4_d
15	SPK_CTL_H	IO=1V8	Output	GPIO0_B3_d
16	HP_HOOK	IO=1V8	Input	ADC_IN2
17	VCCA1V8_CODEC		Output	POWER OUT 1V8 150mA
18	VCCA3V0_CODEC		Output	POWER OUT 3V0 100mA
19	GND			GND
20	IR_RX	IO=1V8	Input	GPIO0_A6/PWM3A_IR_d
21	VCC5V0_TYPEC0_EN	IO=3V3	Output	GPIO4_D2_d
22	CHG_CC_INT_L	IO=1V8	Input	GPIO1_A2/TCPD_CC1_VCONN_EN_d
23	TYPEC0_U2VBUSDET	IO=3V3	Input	TYPEC0_U2VBUSDET
24	TYPEC0_RX1N		Input	TYPEC0_RX1N
25	TYPEC0_RX1P		Input	TYPEC0_RX1P
26	TYPEC0_TX1P		Output	TYPEC0_TX1P
27	TYPEC0_TX1N		Output	TYPEC0_TX1N
28	TYPEC0_DP		Input-Output	TYPEC0_DP
29	TYPEC0_DM		Input-Output	TYPEC0_DM
30	TYPEC0_SBU2_DC		Output	TYPEC0_SBU2_DC
31	TYPEC0_SBU1_DC		Output	TYPEC0_SBU1_DC
32	TYPEC0_SBU2		Output	TYPEC0_SBU2
33	TYPEC0_SBU1		Output	TYPEC0_SBU1
34	TYPEC0_RX2N		Input	TYPEC0_RX2N
35	TYPEC0_RX2P		Input	TYPEC0_RX2P
36	TYPEC0_TX2N		Output	TYPEC0_TX2N
37	TYPEC0_TX2P		Output	TYPEC0_TX2P
38	PW_EN		Input	POWER ON ENABLE
39	VSYS		Input	POWER INPUT 3.3V-5V
40	VSYS		Input	POWER INPUT 3.3V-5V
41	VSYS		Input	POWER INPUT 3.3V-5V
42	GND			GND
43	GND			GND
44	GND			GND
45	GPIO4_C5_3V	IO=3V3	Input-Output	GPIO4_C5/SPDIF_TX_d
46	GPIO4_D0_3V	IO=3V3	Input-Output	GPIO4_D0/PCIE_CLKREQnB_u
47	VCC3V3_SYS		Output	POWER OUT 3V3 500mA
48	VCC3V3_SYS		Output	POWER OUT 3V3 500mA
49	VCC_RTC			POWER INPUT RTC 1.5V-5V
50	MIPI_TX1/RX1_D0N		Input-Output	MIPI_TX1/RX1_D0N
51	MIPI_TX1/RX1_D0P		Input-Output	MIPI_TX1/RX1_D0P
52	MIPI_TX1/RX1_D1N		Input-Output	MIPI_TX1/RX1_D1N
53	MIPI_TX1/RX1_D1P		Input-Output	MIPI_TX1/RX1_D1P
54	MIPI_TX1/RX1_CLKN		Input-Output	MIPI_TX1/RX1_CLKN
55	MIPI_TX1/RX1_CLKP		Input-Output	MIPI_TX1/RX1_CLKP
56	MIPI_TX1/RX1_D2N		Input-Output	MIPI_TX1/RX1_D2N
57	MIPI_TX1/RX1_D2P		Input-Output	MIPI_TX1/RX1_D2P
58	MIPI_TX1/RX1_D3N		Input-Output	MIPI_TX1/RX1_D3N
59	MIPI_TX1/RX1_D3P		Input-Output	MIPI_TX1/RX1_D3P
60	GND			GND
61	MIPI_RX0_D0N		Input	MIPI_RX0_D0N
62	MIPI_RX0_D0P		Input	MIPI_RX0_D0P
63	MIPI_RX0_D1N		Input	MIPI_RX0_D1N
64	MIPI_RX0_D1P		Input	MIPI_RX0_D1P
65	MIPI_RX0_CLKN		Input	MIPI_RX0_CLKN
66	MIPI_RX0_CLKP		Input	MIPI_RX0_CLKP
67	MIPI_RX0_D2N		Input	MIPI_RX0_D2N
68	MIPI_RX0_D2P		Input	MIPI_RX0_D2P
69	MIPI_RX0_D3N		Input	MIPI_RX0_D3N
70	MIPI_RX0_D3P		Input	MIPI_RX0_D3P
71	CIF_CLKO	IO=1V8	Output	GPIO2_B3/SPI2_CLK/VOP_DEN/CIF_CLKOUTA_u
72	VCC1V8_DVP		Output	POWER OUT 1V8 100mA
73	DVP_PDN0_H	IO=1V8	Output	GPIO2_B4/SPI2_CSn0_u
74	DVP_PDN1_H	IO=1V8	Output	GPIO2_D4/SDIO0_BKPWR_d
75	Camera_RST_L	IO=1V8	Output	GPIO2_D3/SDIO0_PWREN_d
76	Camera_RST1_L	IO=1V8	Output	GPIO1_A3/ISP0_FLASHTRIGOUT/ISP1_FLASHTRIGOUT_d
77	LCD_BL_PWM	IO=3V3	Output	GPIO4_C2/PWM0/VOP0_PWM/VOP1_PWM_d
78	LCD_EN	IO=1V8	Output	GPIO1_B5_d
79	LCD_RST	IO=1V8	Output	GPIO1_A0/TCPD_VBUS_SINK_EN_d
80	GPIO4_D5_3V	IO=3V3	Input-Output	GPIO4_D5_d
81	5V_EN	IO=3V3	Output	GPIO4_D6_d
82	VCC3V0_TOUCH		Output	POWER OUT 3V0 100mA
83	I2C4_SDA	IO=1V8	Input-Output	GPIO1_B3/I2C4_SDA_u
84	I2C4_SCL	IO=1V8	Output	GPIO1_B4/I2C4_SCL_u
85	GPIO1_C2	IO=1V8	Input-Output	GPIO1_C2/SPI3_CSn0_u
86	TOUCH_RST_L	IO=1V8	Output	GPIO1_A4/ISP0_PRELIGHT_TRIG/ISP1_PRELIGHT_TRIG_d
87	GPIO1_C6	IO=1V8	Input-Output	GPIO1_C6/TCPD_VBUS_SOURCE0_d
88	EDPAUXP		Output	EDPAUXP
89	EDPAUXN		Output	EDPAUXN
90	EDP_TX0P		Output	EDP_TX0P
91	EDP_TX0N		Output	EDP_TX0N
92	EDP_TX1P		Output	EDP_TX1P
93	EDP_TX1N		Output	EDP_TX1N
94	EDP_TX2P		Output	EDP_TX2P
95	EDP_TX2N		Output	EDP_TX2N
96	EDP_TX3P		Output	EDP_TX3P
97	EDP_TX3N		Output	EDP_TX3N
98	GND			GND
99	MIPI_TX0_CLKP		Output	MIPI_TX0_CLKP
100	MIPI_TX0_CLKN		Output	MIPI_TX0_CLKN
101	MIPI_TX0_D0P		Output	MIPI_TX0_D0P
102	MIPI_TX0_D0N		Output	MIPI_TX0_D0N
103	MIPI_TX0_D1P		Output	MIPI_TX0_D1P
104	MIPI_TX0_D1N		Output	MIPI_TX0_D1N
105	MIPI_TX0_D2P		Output	MIPI_TX0_D2P
106	MIPI_TX0_D2N		Output	MIPI_TX0_D2N
107	MIPI_TX0_D3P		Output	MIPI_TX0_D3P
108	MIPI_TX0_D3N		Output	MIPI_TX0_D3N
109	GND			GND
110	ADC_IN0	IO=1V8	Input	ADC_IN0
111	ADKEY_IN	IO=1V8	Input	ADC_IN1
112	RST_KEY		Input	RST_KEY
113	PWR_KEY		Input	PWR_KEY
114	GPIO1_C7	IO=1V8	Input-Output	GPIO1_C7/TCPD_VBUS_SOURCE1_d
115	SPI1_CLK	IO=1V8	Output	GPIO1_B1/SPI1_CLK/PMCU_JTAG_TCK_u
116	SPI1_CSn0	IO=1V8	Output	GPIO1_B2/SPI1_CSn0/PMCU_JTAG_TMS_u
117	SPI1_TXD4	IO=1V8	Output	GPIO1_B0/SPI1_TXD/UART4_TX_u
118	SPI1_RXD4	IO=1V8	Input	GPIO1_A7/SPI1_RXD/UART4_RX_u
119	TX2	IO=3V3	Output	GPIO4_C4/UART2C_TX_u
120	RX2	IO=3V3	Input	GPIO4_C3/UART2C_RX_u
121	BT_HOST_WAKE_L	IO=1V8	Input	GPIO0_A4/SDIO0_INTn_d
122	BT_WAKE_L	IO=1V8	Output	GPIO2_D2/SDIO0_DETN/PCIE_CLKREQn_u
123	WIFI_REG_ON_H	IO=1V8	Output	GPIO0_B2_d
124	WIFI_HOST_WAKE_L	IO=1V8	Input	GPIO0_A3/SDIO0_WRPT_d
125	BT_REG_ON_H	IO=1V8	Output	GPIO0_B1/PMUIO2_VOLSEL_d
126	UART0_RTS	IO=1V8	Input	GPIO2_C3/UART0_RTSn_u
127	UART0_TXD	IO=1V8	Output	GPIO2_C1/UART0_TX_u
128	UART0_RXD	IO=1V8	Input	GPIO2_C0/UART0_RX_u
129	UART0_CTS	IO=1V8	Output	GPIO2_C2/UART0_CTSn_u
130	VCC_1V8		Output	POWER OUT 1V8 150mA
131	RTC_CLKO_WIFI	IO=1V8	Output	RTC_CLKO_WIFI
132	GND			GND
133	SDIO0_D0	IO=1V8	Input-Output	GPIO2_C4/SDIO0_D0/SPI5_RXD_u
134	SDIO0_D1	IO=1V8	Input-Output	GPIO2_C5/SDIO0_D1/SPI5_TXD_u
135	SDIO0_D2	IO=1V8	Input-Output	GPIO2_C6/SDIO0_D2/SPI5_CLK_u
136	SDIO0_D3	IO=1V8	Input-Output	GPIO2_C7/SDIO0_D3/SPI5_CSn0_u
137	SDIO0_CMD	IO=1V8	Output	GPIO2_D0/SDIO0_CMD_u
138	SDIO0_CLK	IO=1V8	Output	GPIO2_D1/SDIO0_CLKOUT/TEST_CLKOUT1_u
139	RK3399_26M_OUT	IO=1V8	Output	GPIO0_A2/WIFI_26MHz_d
140	HOST1_DP		Input-Output	HOST1_DP
141	HOST1_DM		Input-Output	HOST1_DM
142	GND			GND
143	HOST0_DP		Input-Output	HOST0_DP
144	HOST0_DM		Input-Output	HOST0_DM
145	HUB_RST	IO=1V8	Output	GPIO1_D0/TCPD_VBUS_SOURCE2_d
146	3G_EN	IO=3V3	Output	GPIO4_C6/PWM1_d
147	VCC5V0_HOST_EN	IO=3V3	Output	GPIO4_D1/DP_HOTPLUG_d
148	USB3_DP		Input-Output	USB3_DP
149	USB3_DM		Input-Output	USB3_DM
150	USB3_SSTXP		Output	USB3_SSTXP
151	USB3_SSTXN		Output	USB3_SSTXN
152	USB3_SSRXP		Input	USB3_SSRXP
153	USB3_SSRXN		Input	USB3_SSRXN
154	GND			GND
155	MAC_CLK	IO=3V3	Output	GPIO3_B3/MAC_CLK/I2C5_SCL_u
156	PHY_PMEB	IO=3V3	Output	GPIO3_C0/MAC_COL/UART3_CTSn/SPDIF_TX_u
157	MAC_MDIO	IO=3V3	Input-Output	GPIO3_B5/MAC_MDIO/UART1_TX_u
158	MAC_MDC	IO=3V3	Output	GPIO3_B0/MAC_MDC/SPI0_CSn1_u
159	PHY_RST	IO=3V3	Output	GPIO3_B7/MAC_CRS/CIF_CLKOUTB/UART3_TX_u
160	PHY_TXEN	IO=3V3	Output	GPIO3_B4/MAC_TXEN/UART1_RX_u
161	PHY_TXD3	IO=3V3	Output	GPIO3_A1/MAC_TXD3/SPI4_TXD_d
162	PHY_TXD2	IO=3V3	Output	GPIO3_A0/MAC_TXD2/SPI4_RXD_d
163	PHY_TXD1	IO=3V3	Output	GPIO3_A5/MAC_TXD1/SPI0_TXD_d
164	PHY_TXD0	IO=3V3	Output	GPIO3_A4/MAC_TXD0/SPI0_RXD_d
165	PHY_TXCLK	IO=3V3	Output	GPIO3_C1/MAC_TXCLK/UART3_RTSn_u
166	PHY_INT	IO=3V3	Input	GPIO3_B2/MAC_RXER/I2C5_SDA_u
167	MAC_RXCLK	IO=3V3	Input	GPIO3_B6/MAC_RXCLK/UART3_RX_u
168	MAC_RXD3	IO=3V3	Input	GPIO3_A3/MAC_RXD3/SPI4_CSn0_u
169	MAC_RXD2	IO=3V3	Input	GPIO3_A2/MAC_RXD2/SPI4_CLK_u
170	MAC_RXD1	IO=3V3	Input	GPIO3_A7/MAC_RXD1/SPI0_CSn0_u
171	MAC_RXD0	IO=3V3	Input	GPIO3_A6/MAC_RXD0/SPI0_CLK_u
172	MAC_RXDV	IO=3V3	Input	GPIO3_B1/MAC_RXDV_d
173	GND			GND
174	SDMMC0_PWR_H	IO=1V8	Output	GPIO0_A1/DDRIO_PWROFF/TCPD_CCDB_EN_u
175	SDMMC0_DET_L	IO=1V8	Input	GPIO0_A7/SDMMC0_DET_u
176	SDMMC0_D1	IO=3V3	Input-Output	GPIO4_B1/SDMMC0_D1/UART2A_TX_u
177	SDMMC0_D0	IO=3V3	Input-Output	GPIO4_B0/SDMMC0_D0/UART2A_RX_u
178	SDMMC0_CLK	IO=3V3	Output	GPIO4_B4/SDMMC0_CLKOUT/MUCJTAG_TCK_d
179	SDMMC0_CMD	IO=3V3	Output	GPIO4_B5/SDMMC0_CMD/MCUJTAG_TMS_u
180	SDMMC0_D3	IO=3V3	Input-Output	GPIO4_B3/SDMMC0_D3/APJTAG_TMS_u
181	SDMMC0_D2	IO=3V3	Input-Output	GPIO4_B2/SDMMC0_D2/APJTAG_TCK_u
182	VCC_3V0		Output	POWER OUT 3V0 150mA
183	PORT_HPD	IO=3V3	Input	PORT_HPD
184	I2C_SCL_HDMI	IO=3V3	Output	GPIO4_C1/I2C3_SCL/UART2B_TX_u
185	I2C_SDA_HDMI	IO=3V3	Input-Output	GPIO4_C0/I2C3_SDA/UART2B_RX_u
186	HDMI_CEC	IO=3V3	Output	GPIO4_C7/HDMI_CECINOUT/EDP_HOTPLUG_u
187	HDMI_TXCN	IO=3V3	Output	HDMI_TXCN
188	HDMI_TXCP		Output	HDMI_TXCP
189	HDMI_TX0N		Output	HDMI_TX0N
190	HDMI_TX0P		Output	HDMI_TX0P

Key IC

IC	Description	Model
Core IC	Rockchip RK3399	RK3399
Memory
Storage
PMU	Rockchip RK808-D	RK808-D

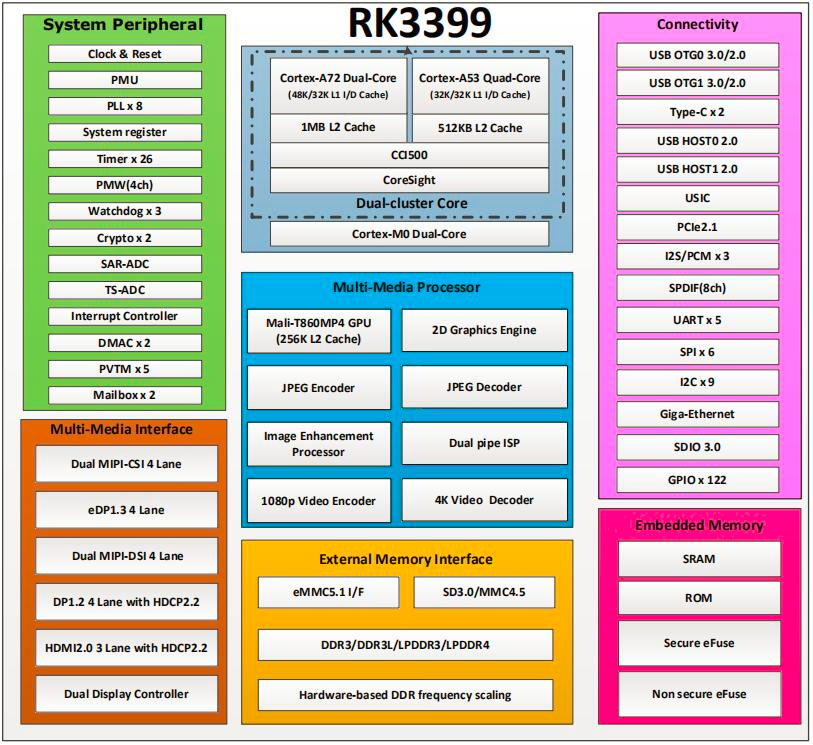

RK3399:

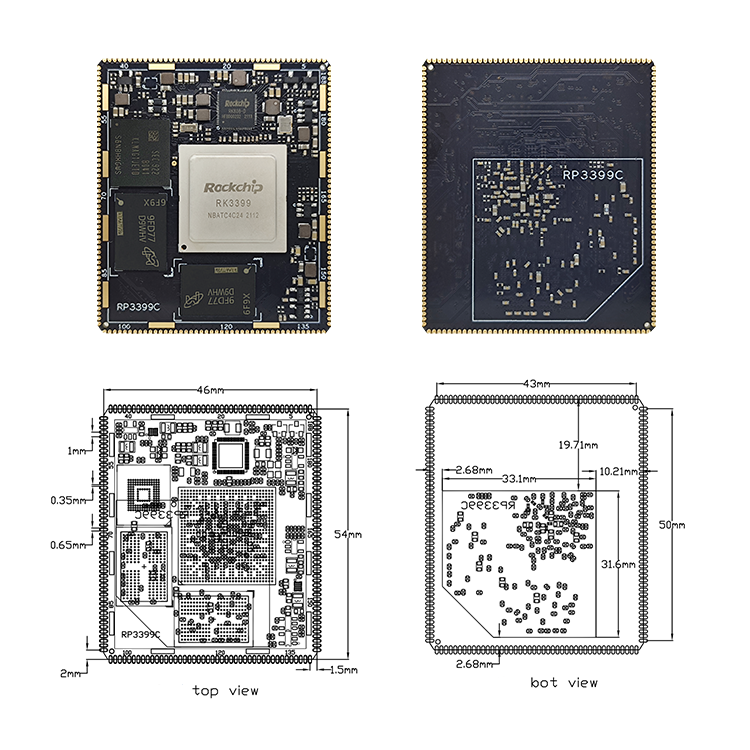

Appearance And Structure
