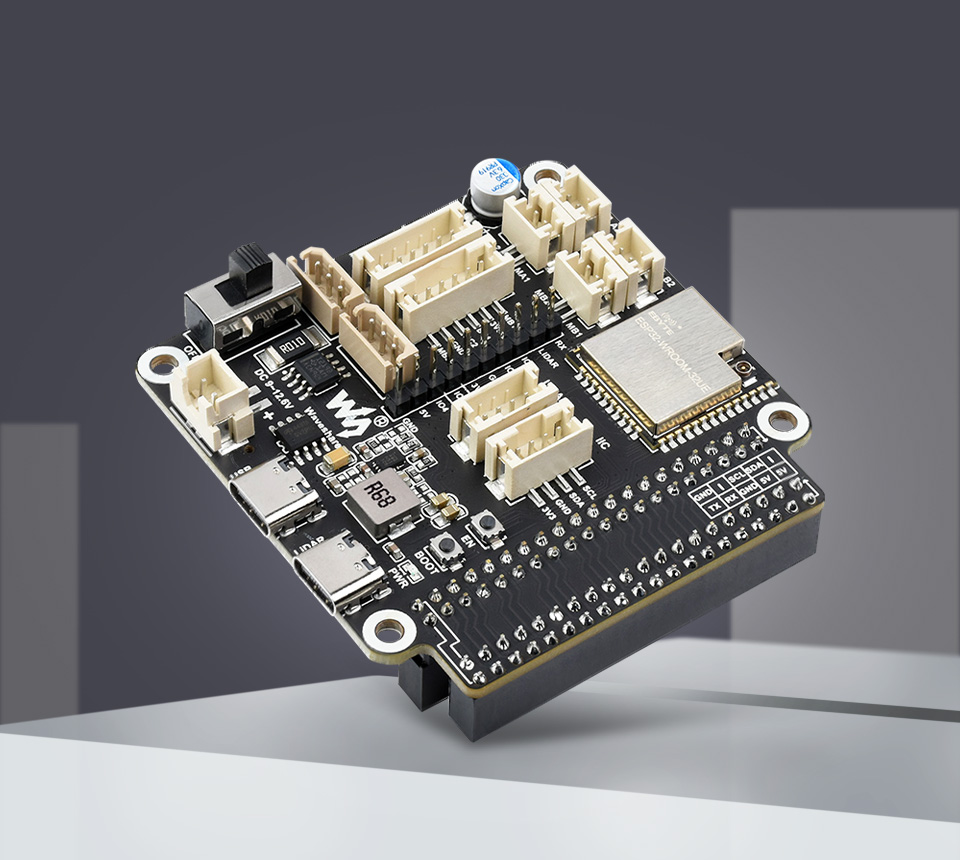

General Driver Board for Robots Based on ESP32 Multi-Functional Supports WIFI Bluetooth and ESP-NOW Communications

General Driver Board for Robots Based on ESP32 Multi-Functional Supports WIFI Bluetooth and ESP-NOW Communications

Model number: General Driver for Robots

Brand: development board

Encapsulation: BTB

Inventory: 1000

Price: $27.00

Add to shopping cart

Product details
Quote Now

Products Description

Key attributes

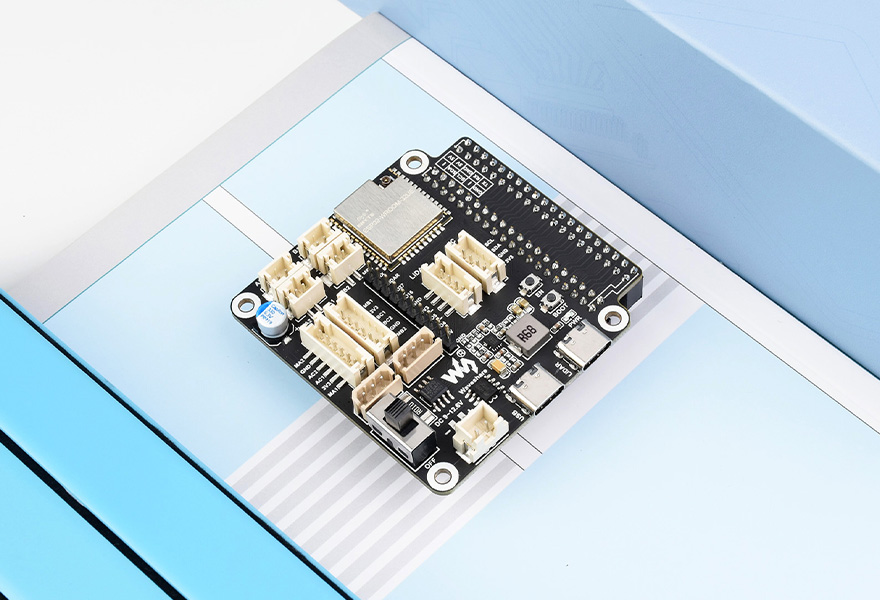

General Driver board for Robots, Based on ESP32, multi-functional, supports WIFI, Bluetooth and ESP-NOW communications, Compatible with Raspberry Pi and Jetson Nano

ESP32-S3 ETH Development Board

Multi-Functional Driver Board Designed For Robots, Offering More Possibilities

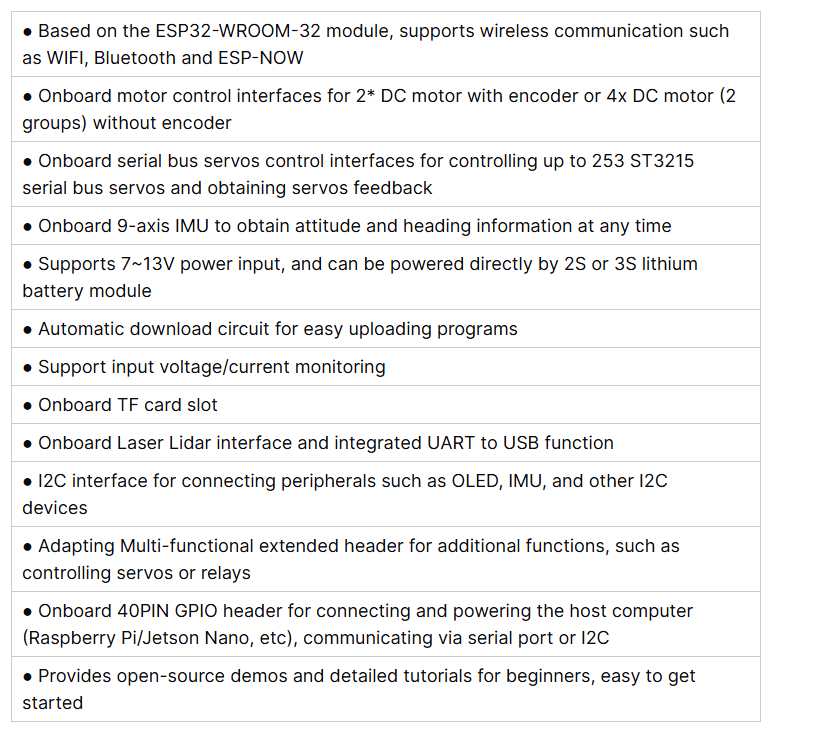

Features At A Glance

Rich Peripheral Interfaces

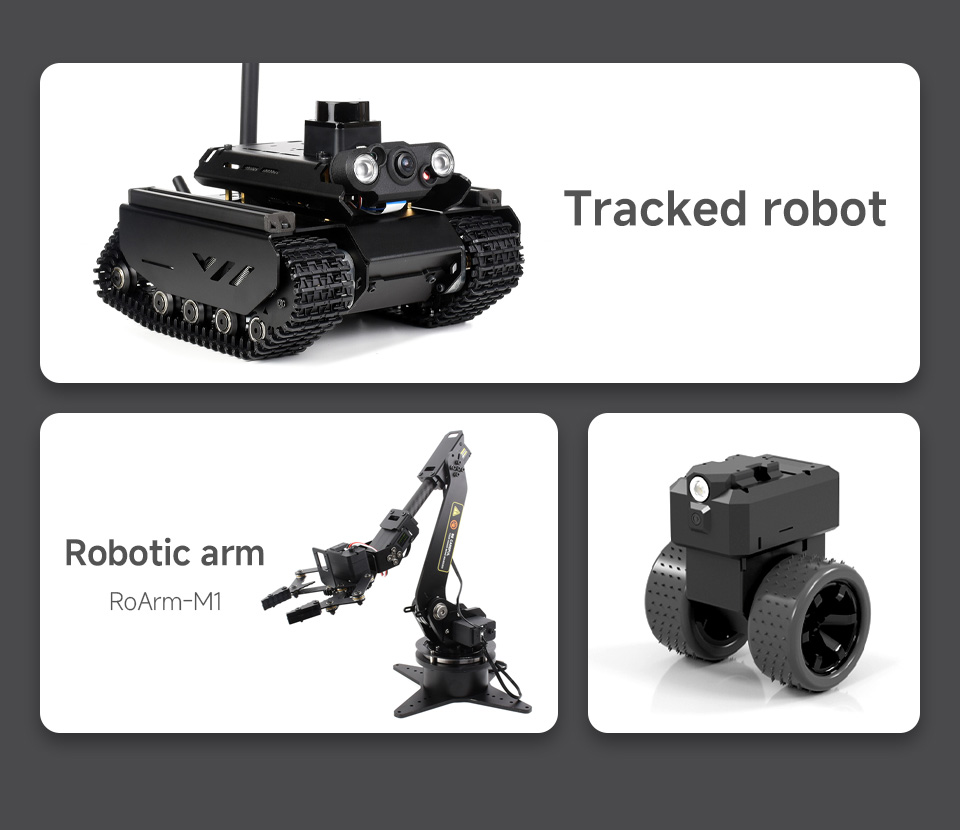

Suitable For Different Types Of Robots


ESP32 Main Controller

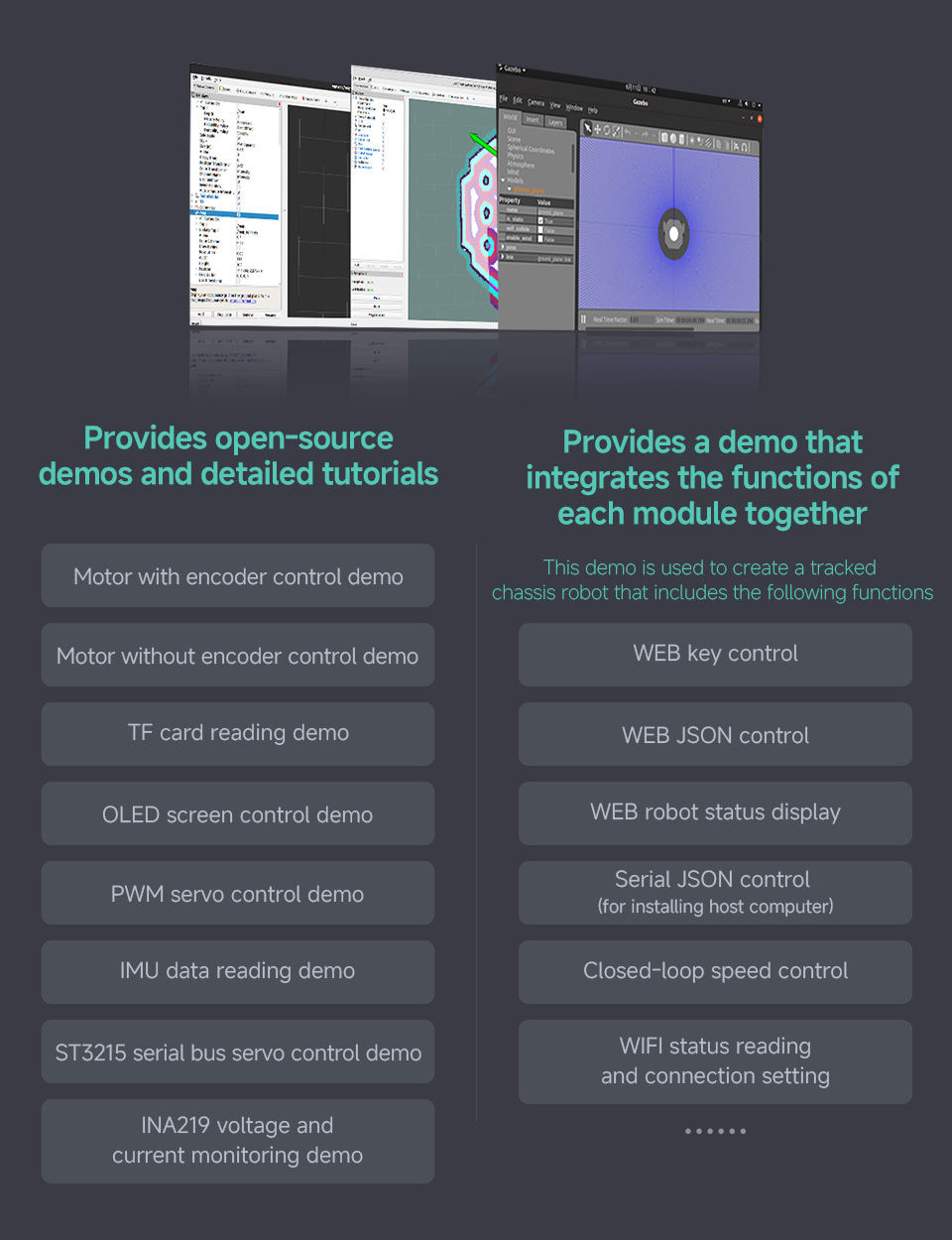

Rich Resources For Secondary Development

        Built-in WiFi And Bluetooth, As Well As ESP-NOW Support, For Wireless Communication

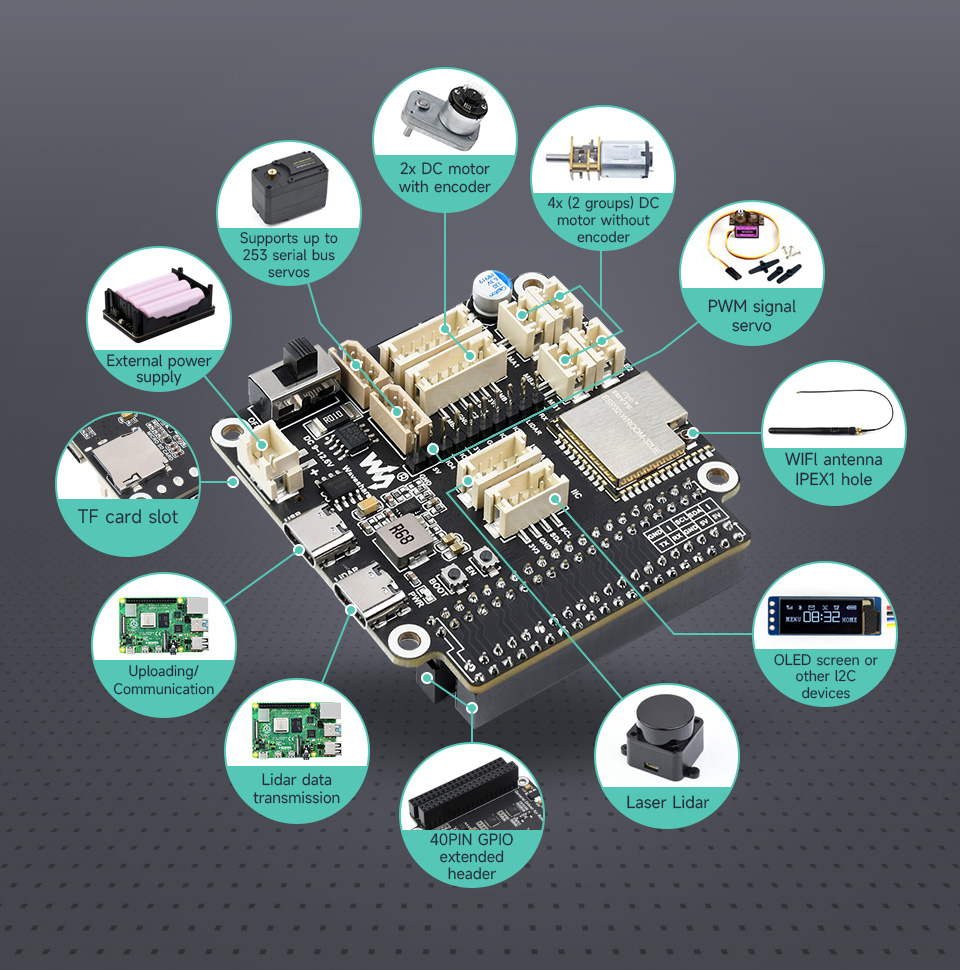

Support Multiple Peripheral Connections

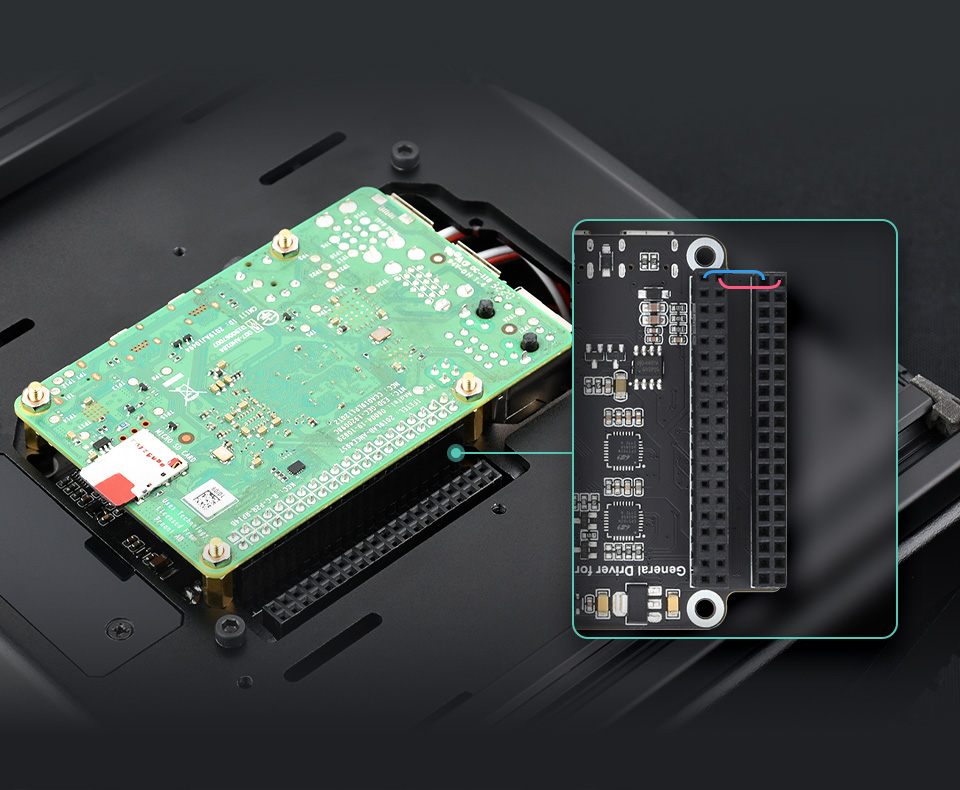

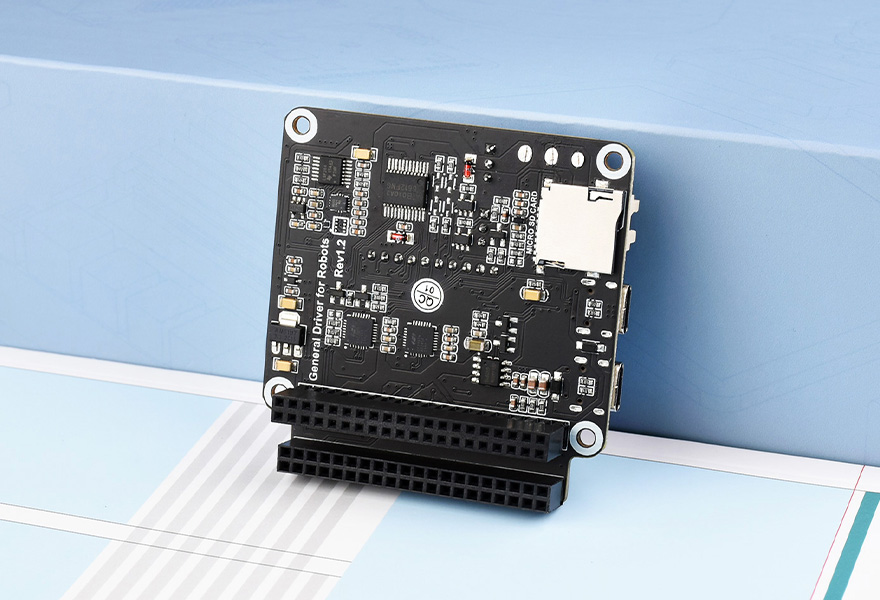

40PIN GPIO Extended Header

     The Inner Side 40PIN Header Is For Directly Connecting To The Raspberry Pi Or Other Host Boards. And Extend The Outer Side 40PIN Header For Connecting With Other HATs Via Cables

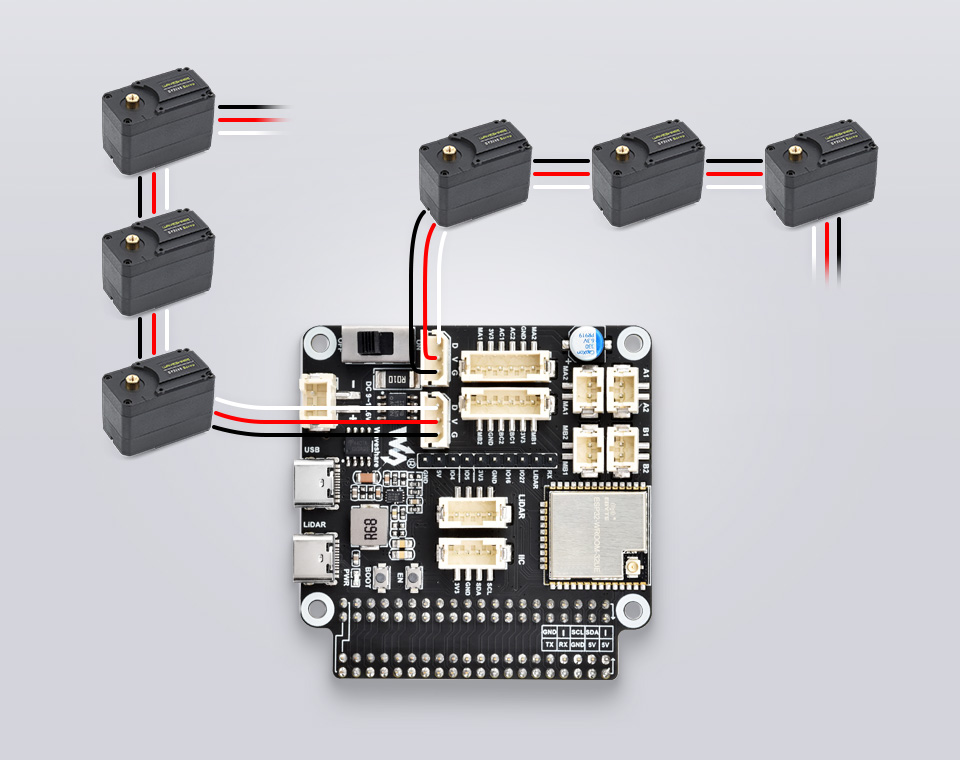

Serial Bus Servo Control

        Allows Controlling Up To 253 ST3215 Serial Bus Servos At The Same Time

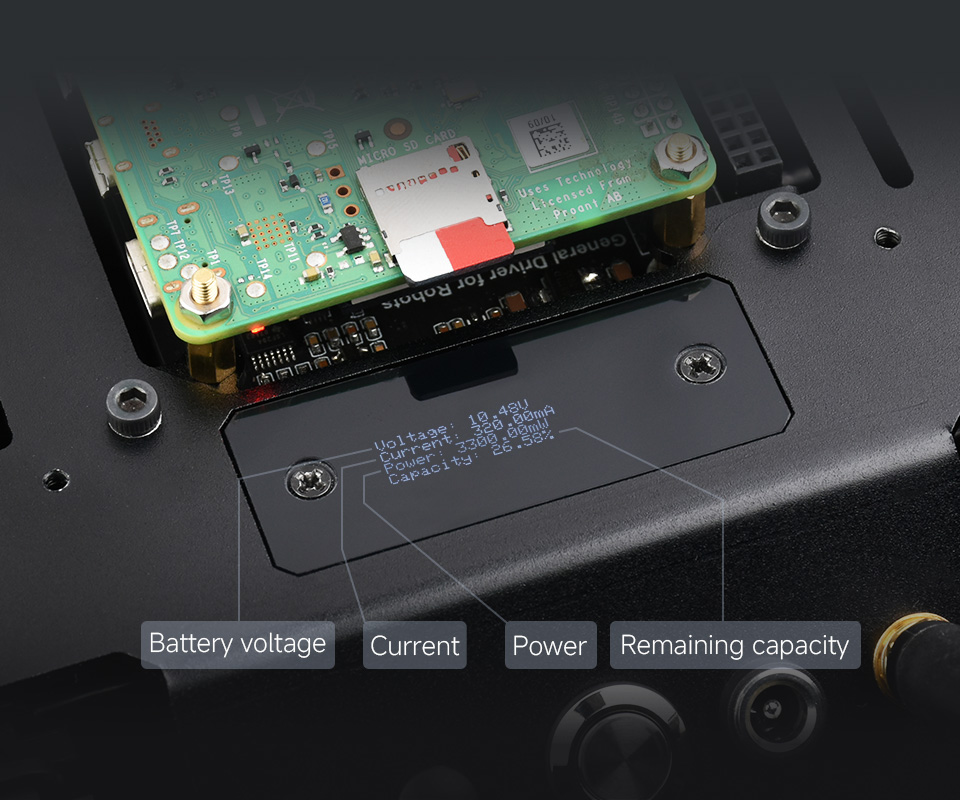

            Voltage And Current Monitoring

            Onboard Voltage/Current Monitoring Chip To Obtain The Power Supply Status
Of The Robot At Any Time

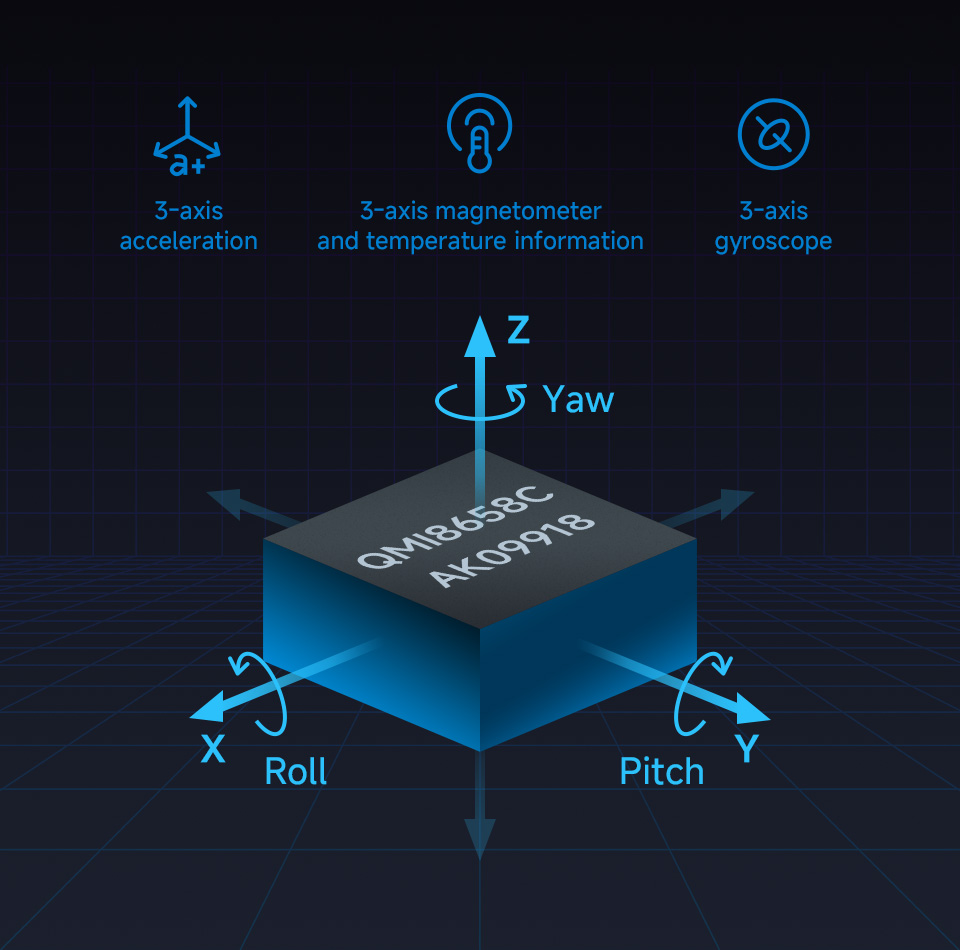

Onboard 9-axis IMU


        Onboard QMI8658C + AK09918, For Detecting Movement, Orientation, And Magnetic
Support Obtaining The Heading Angle Of The Robot Anytime And Anywhere
