General Description
    The Raspberry Pi 3 Model B+ is the latest product in the Raspberry Pi 3 range,
boasting a 64-bit quad core processor running at 1.4GHz, dual-band 2.4GHz
and 5GHz wireless LAN, Bluetooth 4.2/BLE, faster Ethernet, and PoE capability
via a separate PoE HAT
    The dual-band wireless LAN comes with modular compliance certification,
allowing the board to be designed into end products with significantly reduced
wireless LAN compliance testing, improving both cost and time to market.
    The Raspberry Pi 3 Model B+ maintains the same mechanical footprint as both
the Raspberry Pi 2 Model B and the Raspberry Pi 3 Model B.

特性(Features)

Processor:	Broadcom BCM2837B0, Cortex-A53 64-bit SoC @ 1.4GHz
Memory:	1GB LPDDR2 SDRAM
Connectivity:	2.4GHz and 5GHz IEEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2, BLE Gigabit Ethernet over USB 2.0 (maximum throughput 300Mbps) 4 × USB 2.0 ports
Access:	Extended 40-pin GPIO header
Video & sound:	1 × full size HDMI MIPI DSI display port MIPI CSI camera port 4 pole stereo output and composite video port
Multimedia:	H.264, MPEG-4 decode (1080p30); H.264 encode(1080p30); OpenGL ES 1.1, 2.0 graphics
SD card support:	Micro SD format for loading operating system and data storage
Input power:	5V/2.5A DC via micro USB connector 5V DC via GPIO header Power over Ethernet (PoE)–enabled (requires separate PoE HAT)
Environment:	Operating temperature, 0–50°C
Compliance:	For a full list of local and regional product approvals, please visit www.raspberrypi.org/products/raspberry-pi-3-model-b+
Production lifetime:	The Raspberry Pi 3 Model B+ will remain in production until at least January 2023.

General Parameters

Dimension	85mmL*56mmW*17mmH
Connection Mode	Board To Board
CPU	Broadcom BCM2837B0, Cortex-A53 64-bit SoC @ 1.4GHz
GPU	400MHz Broadcom VideoCore 5
Memory	1GB LPDDR2 SDRAM
Storage	TF Card
Power Management
Supply Voltage	5.0V 2.5A
Operating System	Raspbian OS
Operating Temperature	0℃ to 50℃

Absolute Maximum Ratings

Electrical Characteristics

Functional Block Diagram


Interface Description

Functional Pin Description

Key IC
    Broadcom BCM2837B0

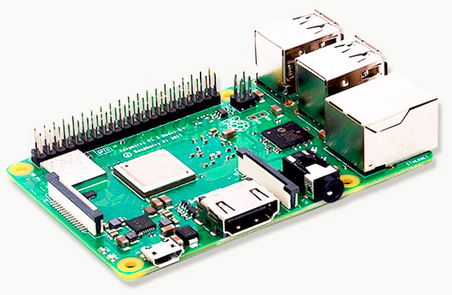

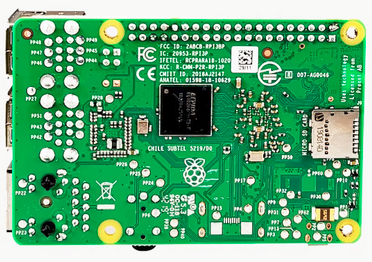

Appearance And Structure
