General Description
    21 mm × 51 mm form factor
    RP2040 microcontroller chip designed by Raspberry Pi in the UK
    Dual-core Arm Cortex-M0+ processor, flexible clock running up to 133 MHz
    264kB on-chip SRAM
    2MB on-board QSPI flash
    2.4GHz 802.11n wireless LAN (Raspberry Pi Pico W and WH only)
    Bluetooth 5.2 (Raspberry Pi Pico W and WH only)
    26 multifunction GPIO pins, including 3 analogue inputs
    2 × UART, 2 × SPI controllers, 2 × I2C controllers, 16 × PWM channels
    1 × USB 1.1 controller and PHY, with host and device support
    8 × Programmable I/O (PIO) state machines for custom peripheral support
    Supported input voltage 1.8–5.5V DC
    Operating temperature -20°C to +85°C (Raspberry Pi Pico and Pico H); -20°C to +70°C (Raspberry Pi Pico W and Pico WH)
    Castellated module allows soldering direct to carrier boards (Raspberry Pi Pico and Pico W only)
    Drag-and-drop programming using mass storage over USB
    Low-power sleep and dormant modes
    Accurate on-chip clock
    Temperature sensor
    Accelerated integer and floating-point libraries on-chip

Features

General Parameters

Dimension	51mmL*21mmW*3mmH
Connection Mode	Board To Board
CPU	RP2040
GPU
Memory
Storage
Power Management
Supply Voltage	5.0V 0.3A
Operating System
Operating Temperature	-20℃ to 80℃

Absolute Maximum Ratings

Electrical Characteristics

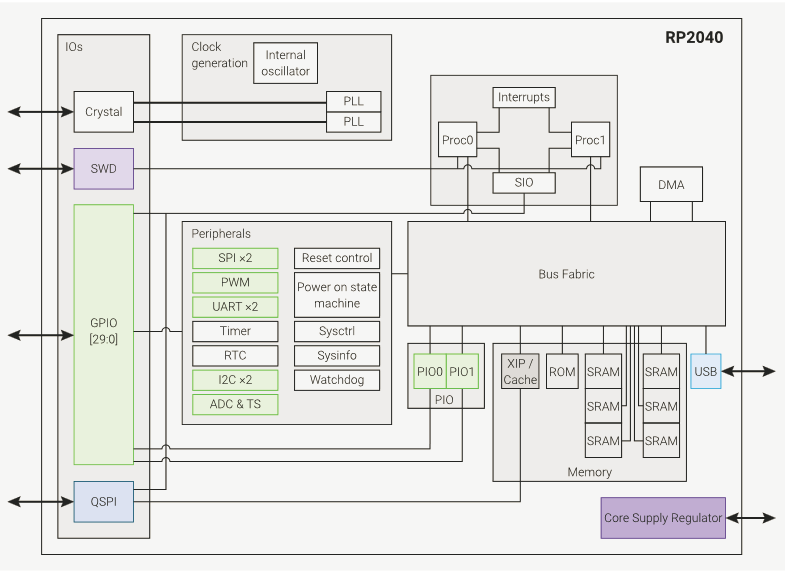

Functional Block Diagram


Interface Description

Functional Pin Description

Key IC
    RP2040


Appearance And Structure
