Allwinner T113-S3 Core Board
  • Allwinner T113-S3 Core Board
  • Allwinner T113-S3 Core Board
  • Allwinner T113-S3 Core Board
Allwinner T113-S3 Core Board
Allwinner T113-S3 Core Board

Model number: RP-T113

Brand:

Encapsulation: SMT

Inventory: 1000

Price: $15.00
-
+
  • Product details
  • Quote Now
General Description

Features

General Parameters

Dimension 40mmL*30mmW*3mmH
Connection Mode SMT
CPU Allwinner RPT113 Dual-Core ARM CortexTM-A7 CPU
Memory Build-in 128MB DDR3
Storage EMMC 5.1 4GB(8G/16G/32G Optional)
Power Management Discrete Design
Supply Voltage 3.4-5.5V
Operating System Linux5.4 QT5.12.5
Operating Temperature -25°C to +85°C

Absolute Maximum Ratings
Supply Input Voltage range 4.8V to 5.2 V
Input voltage -0.3V to VDD+0.3V
Lead Temperature 260℃
Storage Temperature Range −40℃ to 100℃
Operation Junction Temperature Range
Operation Ambient Temperature Range −20℃ to 85
Maximum Junction Temperature Range
Maximum Power Dissipation (PD,TA<40°C) 10W

Electrical Characteristics

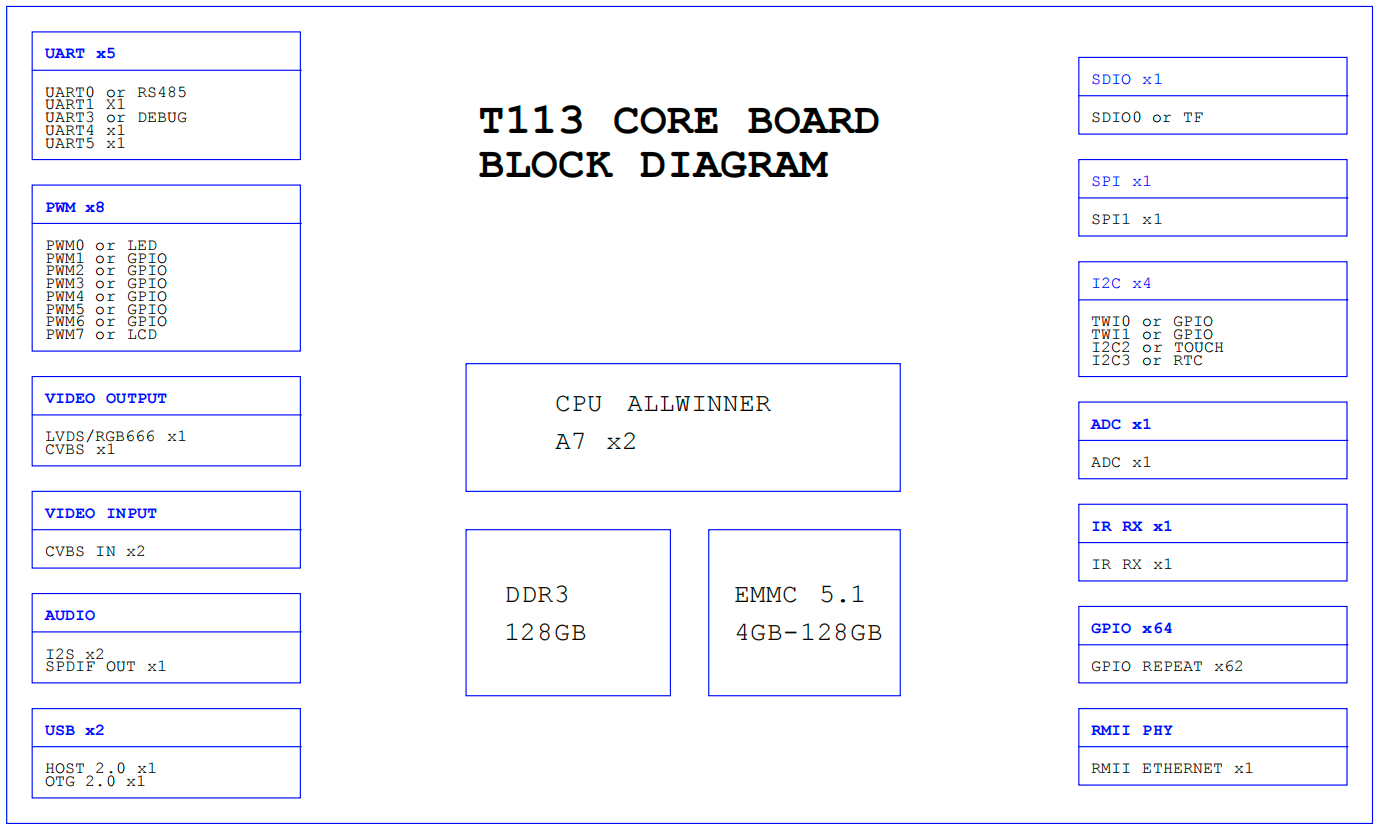

Functional Block Diagram

Interface Description
RGB RGB666 Output 720P
LVDS 1x 6/8 LVDS Output , Support 1280x800
Internet 100M RMII
CVBS Input
2 x CVBS Input
CVBS Output
1 x CVBS Output
I2S 2 x I2S,One 8Channels/One 2Channels
Audio Output
1 x Stereo
SDIO 1 x SDIO 3.0
USB 2.0 1 x USB 2.0
UART 5 x UART
SPI 1 x SPI
I2C 4 x I2C
PWM 8 x PWM
ADC 1 x ADC
GPIO 62 x GPIO

Functional Pin Description
Pin Name/Default Function IO Voltage Configured State Multiplex Function
1 GND GROUND CONNECTION
2 SDC0-DET VCC-PF 3V3 Input-Output PF6/SPDIF_OUT/IR_RX/I2S2_MCLK/PWM5/PF_EINT6
3 SDC0-D1 VCC-PF 3V3 Input-Output PF0/SDC0_D1/JTAG_MS/R_JTAG_MS/I2S2_DOUT1/I2S2_DIN0/PF_EINT0
4 SDC0-D0 VCC-PF 3V3 Input-Output PF1/SDC0_D0/JTAG_DI/R_JTAG_DI/I2S2_DOUT0/I2S2_DIN1/PF_EINT1
5 SDC0-CLK VCC-PF 3V3 Input-Output PF2/SDC0_CLK/UART0_TX/TWI0_SCK/LEDC_DO/SPDIF_IN/PF_EINT2
6 SDC0-CMD VCC-PF 3V3 Input-Output PF3/SDC0_CMD/JTAG_DO/R_JTAG_DO/I2S2_BCLK/PF_EINT3
7 SDC0-D3 VCC-PF 3V3 Input-Output PF4/SDC0_D3/UART0_RX/TWI0_SDA/PWM6/IR_TX/PF_EINT4
8 SDC0-D2 VCC-PF 3V3 Input-Output PF5/SDC0_D2/JTAG_CK/R_JTAG_CK/I2S2_LRCK/PF_EINT5
9 GND GROUND CONNECTION
10 NC
11 NC
12 NC
13 NC
14 NC
15 NC
16 NC
17 NC
18 NC
19 NC
20 NC
21 NC
22 NC
23 NC
24 NC
25 NC
26 NC
27 GND GROUND CONNECTION
28 VSYS 3V4-5V5 Input MAIN POWER INPUT 3.4V-5.5V
29 GND GROUND CONNECTION
30 VCC-3V3 3V3 Output 3.3V OUTPUT 500mA
31 GND GROUND CONNECTION
32 VCC-1V8 1V8 Output 1.8V OUTPUT 80mA
33 GND GROUND CONNECTION
34 AVCC 1V8 Output 1.8V OUTPUT 100mA
35 EMMC_KEY 1V8-3V3 Input UPGRADE KEY
36 POWER_EN 3V4-5V5 Input POWER ON KEY
37 KEY_RST 3V3 Input RESET KEY
38 AP-CK24M-OUT 1V8 Output 24M CLOCK OUTPUT
39 GND GROUND CONNECTION
40 NC
41 NC
42 PE13 VCC-PE 3V3 Input-Output PE13/TWI2_SDA/PWM5/I2S0_DOUT0/I2S0_DIN1/DMIC_DATA3/RGMII_RXD2/PE_EINT13
43 PE12 VCC-PE 3V3 Input-Output PE12/TWI2_SCK/NCSI0_FIELD/I2S0_DOUT2/I2S0_DIN2/RGMII_TXD3/PE_EINT12
44 RXD1 VCC-PE 3V3 Input-Output PE11/NCSI0_D7/UART1_RX/I2S0_DOUT3/I2S0_DIN3/JTAG_CK/RGMII_TXD2/PE_EINT11
45 TXD1 VCC-PE 3V3 Input-Output PE10/NCSI0_D6/UART1_TX/PWM4/IR_RX/JTAG_DO/EPHY_25M/PE_EINT10
46 RXD3 VCC-PE 3V3 Input-Output PE9/NCSI0_D5/UART1_CTS/PWM3/UART3_RX/JTAG_DI/MDIO/PE_EINT9
47 TXD3 VCC-PE 3V3 Input-Output PE8/NCSI0_D4/UART1_RTS/PWM2/UART3_TX/JTAG_MS/MDC/PE_EINT8
48 RXD5 VCC-PE 3V3 Input-Output PE7/NCSI0_D3/UART5_RX/TWI3_SDA/SPDIF_OUT/D_JTAG_CK/R_JTAG_CK
/RGMII_CLKIN/RMII_RXER/PE_EINT7
49 TXD5 VCC-PE 3V3 Input-Output PE6/NCSI0_D2/UART5_TX/TWI3_SCK/SPDIF_IN/D_JTAG_DO/R_JTAG_DO
/RGMII_TXCTRL/RMII_TXEN/PE_EINT6
50 RXD4 VCC-PE 3V3 Input-Output PE5/NCSI0_D1/UART4_RX/TWI2_SDA/LEDC_DO/D_JTAG_DI/R_JTAG_DI
/RGMII_TXD1/RMII_TXD1/PE_EINT5
51 TXD4 VCC-PE 3V3 Input-Output PE4/NCSI0_D0/UART4_TX/TWI2_SCK/CLK_FANOUT2/D_JTAG_MS/R_JTAG_MS
/RGMII_TXD0/RMII_TXD0/PE_EINT4
52 RXD0 VCC-PE 3V3 Input-Output PE3/NCSI0_MCLK/UART2_RX/TWI0_SDA/CLK_FANOUT1/UART0_RX
/RGMII_TXCK/RMII_TXCK/PE_EINT3
53 TXD0 VCC-PE 3V3 Input-Output PE2/NCSI0_PCLK/UART2_TX/TWI0_SCK/CLK_FANOUT0/UART0_TX
/RGMII_RXD1/RMII_RXD1/PE_EINT2
54 PE1 VCC-PE 3V3 Input-Output PE1/NCSI0_VSYNC/UART2_CTS/TWI1_SDA/LCD0_VSYNC
/RGMII_RXD0/RMII_RXD0/PE_EINT1
55 PE0 VCC-PE 3V3 Input-Output PE0/NCSI0_HSYNC/UART2_RTS/TWI1_SCK/LCD0_HSYNC
/RGMII_RXCTRL/RMII_CRS_DV/PE_EINT0
56 GND Input-Output GROUND CONNECTION
57 LVDS0-V0P VCC-PD 3V3 Input-Output PD0/LCD0_D2/LVDS0_V0P/DSI_D0P/TWI0_SCK/PD_EINT0
58 LVDS0-V0N VCC-PD 3V3 Input-Output PD1/LCD0_D3/LVDS0_V0N/DSI_D0N/UART2_TX/PD_EINT1
59 LVDS0-V1P VCC-PD 3V3 Input-Output PD2/LCD0_D4/LVDS0_V1P/DSI_D1P/UART2_RX/PD_EINT2
60 LVDS0-V1N VCC-PD 3V3 Input-Output PD3/LCD0_D5/LVDS0_V1N/DSI_D1N/UART2_RTS/PD_EINT3
61 LVDS0-V2P VCC-PD 3V3 Input-Output PD4/LCD0_D6/LVDS0_V2P/DSI_CKP/UART2_CTS/PD_EINT4
62 LVDS0-V2N VCC-PD 3V3 Input-Output PD5/LCD0_D7/LVDS0_V2N/DSI_CKN/UART5_TX/PD_EINT5
63 LVDS0-CKP VCC-PD 3V3 Input-Output PD6/LCD0_D10/LVDS0_CKP/DSI_D2P/UART5_RX/PD_EINT6
64 LVDS0-CKN VCC-PD 3V3 Input-Output PD7/LCD0_D11/LVDS0_CKN/DSI_D2N/UART4_TX/PD_EINT7
65 LVDS0-V3P VCC-PD 3V3 Input-Output PD8/LCD0_D12/LVDS0_V3P/DSI_D3P/UART4_RX/PD_EINT8
66 LVDS0-V3N VCC-PD 3V3 Input-Output PD9/LCD0_D13/LVDS0_V3N/DSI_D3N/PWM6/PD_EINT9
67 SPI1_CS VCC-PD 3V3 Input-Output PD10/LCD0_D14/LVDS1_V0P/SPI1_CS/DBI_CSX/UART3_TX/PD_EINT10
68 SPI1_CLK VCC-PD 3V3 Input-Output PD11/LCD0_D15/LVDS1_V0N/SPI1_CLK/DBI_SCLK/UART3_RX/PD_EINT11
69 SPI1_MOSI VCC-PD 3V3 Input-Output PD12/LCD0_D18/LVDS1_V1P/SPI1_MOSI/DBI_SDO/TWI0_SDA/PD_EINT12
70 SPI1_MISO VCC-PD 3V3 Input-Output PD13/LCD0_D19/LVDS1_V1N/SPI1_MISO/DBI_SDI/DBI_TE
/DBI_DCX/UART3_RTS/PD_EINT13
71 USB_DET VCC-PD 3V3 Input-Output PD14/LCD0_D20/LVDS1_V2P/SPI1_HOLD/DBI_DCX/DBI_WRX
/UART3_CTS/PD_EINT14
72 PD15 VCC-PD 3V3 Input-Output PD15/LCD0_D21/LVDS1_V2N/SPI1_WP/DBI_TE/IR_RX/PD_EINT15
73 PWM0 VCC-PD 3V3 Input-Output PD16/LCD0_D22/LVDS1_CKP/DMIC_DATA3/PWM0/PD_EINT16
74 PD17 VCC-PD 3V3 Input-Output PD17/LCD0_D23/LVDS1_CKN/DMIC_DATA2/PWM1/PD_EINT17
75 PD18 VCC-PD 3V3 Input-Output PD18/LCD0_CLK/LVDS1_V3P/DMIC_DATA1/PWM2/PD_EINT18
76 PD19 VCC-PD 3V3 Input-Output PD19/LCD0_DE/LVDS1_V3N/DMIC_DATA0/PWM3/PD_EINT19
77 TWI2_SCL VCC-PD 3V3 Input-Output PD20/LCD0_HSYNC/TWI2_SCK/DMIC_CLK/PWM4/PD_EINT20
78 TWI2_SDA VCC-PD 3V3 Input-Output PD21/LCD0_VSYNC/TWI2_SDA/UART1_TX/PWM5/PD_EINT21
79 PWM7 VCC-PD 3V3 Input-Output PD22/SPDIF_OUT/IR_RX/UART1_RX/PWM7/PD_EINT22
80 GND GROUND CONNECTION
81 TWI3_SDA VCC-PB 3V3 Input-Output PB7/LCD0_D17/I2S2_MCLK/TWI3_SDA/IR_RX/LCD0_D23/UART3_RX
/CPUBIST1/PB_EINT7
82 TWI3_SCL VCC-PB 3V3 Input-Output PB6/LCD0_D16/I2S2_LRCK/TWI3_SCK/PWM1/LCD0_D22/UART3_TX
/CPUBIST0/PB_EINT6
83 CAN1-RX VCC-PB 3V3 Input-Output PB5/LCD0_D9/I2S2_BCLK/TWI1_SDA/PWM0/LCD0_D21/UART5_RX
/CAN1-RX0/PB_EINT5
84 CAN1-TX VCC-PB 3V3 Input-Output PB4/LCD0_D8/I2S2_DOUT0/TWI1_SCK/I2S2_DIN1/LCD0_D20
/UART5_TX/CAN1-TX0/PB_EINT4
85 CAN0-RX VCC-PB 3V3 Input-Output PB3/LCD0_D1/I2S2_DOUT1/TWI0_SCK/I2S2_DIN0/LCD0_D19
/UART4_RX/CAN0-RX0/PB_EINT3
86 CAN0-TX VCC-PB 3V3 Input-Output PB2/LCD0_D0/I2S2_DOUT2/TWI0_SDA/I2S2_DIN2/LCD0_D18
/UART4_TX/CAN0-TX0/PB_EINT2
87 GND GROUND CONNECTION
88 MICIN3N Input MICIN3N
89 MICIN3P Input MICIN3P
90 GND GROUND CONNECTION
91 FMINL Input AUDIO INPUT L
92 FMINR Input AUDIO INPUT R
93 GND GROUND CONNECTION
94 LINEINL Input AUDIO INPUT L
95 LINEINR Input AUDIO INPUT R
96 HPOUTFB Input 耳机GROUND CONNECTION
97 HPOUTL HEADPHONE L
98 HPOUTR HEADPHONE R
99 GND GROUND CONNECTION
100 GPADC0 1V8 Input ADC INPUT
101 TP-X1 Input TOUCH SCREEN X1
102 TP-X2 Input TOUCH SCREEN X2
103 TP-Y1 Input TOUCH SCREEN Y1
104 TP-Y2 Input TOUCH SCREENY2
105 GND GROUND CONNECTION
106 TV-IN1 Input CVBS输入1
107 GND GROUND CONNECTION
108 TV-IN0 Input CVBS输入0
109 GND GROUND CONNECTION
110 TV-OUT Output CVBS输出
111 GND GROUND CONNECTION
112 USB1-DP USB1-DP
113 USB1-DM USB1-DM
114 GND GND
115 USB0-DM OTG-DM
116 USB0-DP OTG-DP
117 GND GROUND CONNECTION
118 RMII-MDIO VCC-PG 3V3 Input-Output PG15/I2S1_DOUT0/TWI2_SDA/MDIO/I2S1_DIN1/SPI0_HOLD/UART1_CTS/PG_EINT15
119 RMII-MDC VCC-PG 3V3 Input-Output PG14/I2S1_DIN0/TWI2_SCK/MDC/I2S1_DOUT1/SPI0_WP/UART1_RTS/PG_EINT14
120 RMII-RXER VCC-PG 3V3 Input-Output PG13/I2S1_BCLK/TWI0_SDA/RGMII_CLKIN/RMII_RXER/PWM2
/LEDC_DO/UART1_RX/PG_EINT13
121 RMII-CRS-RXDV VCC-PG 3V3 Input-Output PG0/SDC1_CLK/UART3_TX/RGMII_RXCTRL/RMII_CRS_DV/PWM7/PG_EINT0
122 RMII-RXD0 VCC-PG 3V3 Input-Output PG1/SDC1_CMD/UART3_RX/RGMII_RXD0/RMII_RXD0/PWM6/PG_EINT1
123 RMII-RXD1 VCC-PG 3V3 Input-Output PG2/SDC1_D0/UART3_RTS/RGMII_RXD1/RMII_RXD1/UART4_TX/PG_EINT2
124 RMII-RXCK VCC-PG 3V3 Input-Output PG10/PWM3/TWI3_SCK/RGMII_RXCK/CLK_FANOUT0/IR_RX/PG_EINT10
125 RMII-TXCK VCC-PG 3V3 Input-Output PG3/SDC1_D1/UART3_CTS/RGMII_TXCK/RMII_TXCK/UART4_RX/PG_EINT3
126 RMII-TXD0 VCC-PG 3V3 Input-Output PG4/SDC1_D2/UART5_TX/RGMII_TXD0/RMII_TXD0/PWM5/PG_EINT4
127 RMII-TXD1 VCC-PG 3V3 Input-Output PG5/SDC1_D3/UART5_RX/RGMII_TXD1/RMII_TXD1/PWM4/PG_EINT5
128 RMII-TXEN VCC-PG 3V3 Input-Output PG12/I2S1_LRCK/TWI0_SCK/RGMII_TXCTRL/RMII_TXEN/CLK_FANOUT2
/PWM0/UART1_TX/PG_EINT12
129 EPHY_25M VCC-PG 3V3 Input-Output PG11/I2S1_MCLK/TWI3_SDA/EPHY_25M/CLK_FANOUT1/TCON_TRIG/PG_EINT11
130 RMII-RESET VCC-PG 3V3 Input-Output PG9/UART1_CTS/TWI1_SDA/RGMII_RXD3/UART3_RX/PG_EINT9
131 PG8 VCC-PG 3V3 Input-Output PG8/UART1_RTS/TWI1_SCK/RGMII_RXD2/UART3_TX/PG_EINT8
132 PG7 VCC-PG 3V3 Input-Output PG7/UART1_RX/TWI2_SDA/RGMII_TXD3/SPDIF_IN/PG_EINT7
133 PG6 VCC-PG 3V3 Input-Output PG6/UART1_TX/TWI2_SCK/RGMII_TXD2/PWM1/PG_EINT6
134 GND GROUND CONNECTION
