Allwinner H6 Core Board

Model number: RP-H6_1+8

Brand:

Encapsulation: SMT

Inventory: 1000

Price: $40.00

Add to shopping cart

Product details
Quote Now

General Description

Features

General Parameters

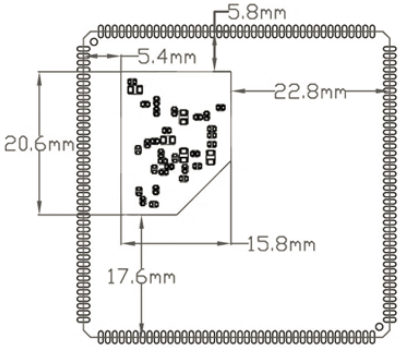

Dimension	44mmL x 44mmW x 3.0mmH
CPU	Allwinner H6 Quad-Core 1.5GHz
GPU	Mali-720 MP2 GPU
Memory	DDR3 1G（2G Optional)
Storage	eMMC 8G（16G/32G/64G Optional)
Power Management	AXP805
Supply Voltage	5V 1A
Operating System	Android 7.1+Linux3.10 / Linux5.3/armbian
Operating Temperature	-10°C to +75°C

Absolute Maximum Ratings)

Supply Input Voltage range	4.8V to 5.2 V
Input voltage	-0.3V to VDD+0.3V
Lead Temperature	260℃
Storage Temperature Range	−30℃ to 100℃
Operation Junction Temperature Range
Operation Ambient Temperature Range	−10℃ to 75℃
Maximum Junction Temperature Range
Maximum Power Dissipation (PD,TA<40°C)	10W
Thermal resistance (junction to ambient)	45℃/W

Electrical Characteristics

Functional Block Diagram

Interface Description

USB	2 x USB2.0, 1 x USB3.0
UART	2 x TTL 1.8V, 3 x TTL 3.3v
GPIO	50 x GPIO
PWM	3 x PWM
RGB	1 x RGB 888 Output, Support 1920x1080 1080P 60fps
HDMI	1 x HDMI Output，Support 1920x1080 1080P 60fps
CVBS	1 x CVBS Output
PCIE	1 x PCIE
Audio Output	1 x Stereo
Mic	1 x Mic, No Used
SDIO	2 x SDIO, One For TF Card, One For WIFI
IR	1 x IR
I2C	3 x I2C
SPI	1 x SPI
Internet1	EMAC 10/100M
Internet2	GMAC PHY, Multiplex With RGB
Power Output	1.8V, 3.3V

Functional Pin Description

Pin	Name	IO Voltage	Configured	Default Function	Multiplex Function
Pin	Name	IO Voltage	State	Default Function	Multiplex Function
1	LCD0-D5	3V3	Input-Output	LCD0-D5	PD3/LCD0-D5/TS0-DVLD/CSI-VSYNC/RGMII-RXD0/RMII-RXD0
2	LCD0-D4	3V3	Input-Output	LCD0-D4	PD2/LCD0-D4/TS0-SYNC/CSI-HSYNC/RGMII-RXD1/RMII-RXD1
3	LCD0-D3	3V3	Input-Output	LCD0-D3	PD1/LCD0-D3/TS0-ERR/CSI-MCLK/RGMII-RXD2/RMII-NULL
4	LCD0-D2	3V3	Input-Output	LCD0-D2	PD0/LCD0-D2/TS0-CLK/CSI-PCLK/RGMII-RXD3/RMII-NULL
5	LCD0-D15	3V3	Input-Output	LCD0-D15	PD11/LCD0-D15/TS0-D7/CSI-D7/RGMII-TXCK/RMII-TXCK
6	LCD0-D14	3V3	Input-Output	LCD0-D14	PD10/LCD0-D14/TS0-D6/CSI-D6/RGMII-TXD0/RMII-TXD0
7	LCD0-D13	3V3	Input-Output	LCD0-D13	PD9/LCD0-D13/TS0-D5/CSI-D5/RGMII-TXD1/RMII-TXD1
8	LCD0-D12	3V3	Input-Output	LCD0-D12	PD8/LCD0-D12/TS0-D4/CSI-D4/RGMII-TXD2/RMII-NULL
9	LCD0-D11	3V3	Input-Output	LCD0-D11	PD7/LCD0-D11/TS0-D3/CSI-D3/RGMII-TXD3/RMII-NULL
10	LCD0-D10	3V3	Input-Output	LCD0-D10	PD6/LCD0-D10/TS0-D2/CSI-D2/RGMII-NULL/RMII-RXER
11	LCD0-D23	3V3	Input-Output	LCD0-D23	PD17/LCD0-D23/TS2-CLK/DMIC-DATA2
12	LCD0-D22	3V3	Input-Output	LCD0-D22	PD16/LCD0-D22/TS1-D0/DMIC-DATA1
13	LCD0-D21	3V3	Input-Output	LCD0-D21	PD15/LCD0-D21/TS1-DVLD/DMIC-DATA0/CSI-D9
14	LCD0-D20	3V3	Input-Output	LCD0-D20	PD14/LCD0-D20/TS1-SYNC/DMIC-CLK/CSI-D8
15	LCD0-D19	3V3	Input-Output	LCD0-D19	PD13/LCD0-D19/TS1-ERR/CSI-SDA/RGMII-CLKIN/RMII-NULL
16	LCD0-D18	3V3	Input-Output	LCD0-D18	PD12/LCD0-D18/TS1-CLK/CSI-SCK/RGMII-TXCTL/RMII-TXEN
17	GND	0V	GROUND CONNECTION	GROUND CONNECTION
18	PD22/PWM0	3V3	Input-Output	PWM0	PD22/PWM0/TS3-CLK/UART2-CTS
19	PL10/PWM1	3V3	Input-Output	PWM1	PL10/S-OWC/S-PWM1
20	PG14	3V3	Input-Output	PG14	PG14/PCM2-MCLK/H-PCM2-MCLK/SIM0-DET/BIST-RESULT3
21	PL4	3V3	Input-Output	PL4	PL4/S-JTAG-MS
22	PH5/SPI1-TX	3V3	Input-Output	PH5	PH5/SPI1-MOSI/SPDIF-MCLK/TWI1-SCK/SIM1-RST
23	VCC_PD	3V3	Output	VCC_PD	POWER OUT 3V3 150mA
24	BLDO3	1V8	Output	BLDO3	POWER OUT 1V8 100mA
25	GND	0V	GROUND CONNECTION	GROUND CONNECTION
26	SDA0	3V3	Input-Output	SDA0	PD26/TWI0-SDA/TS3-D0/UART3-CTS/JTAG-DI
27	SCK0	3V3	Input-Output	SCK0	PD25/TWI0-SCK/TS3-DVLD/UART3-RTS/JTAG-DO
28	PH3/INT	3V3	Input-Output	INT	PH3/SPI1-CS/PCM0-DIN/H-PCM0-DIN/SIM1-CLK
29	PH4/RST	3V3	Input-Output	RST	PH4/SPI1-CLK/PCM0-MCLK/H-PCM0-MCLK/SIM1-DATA
30	GND	0V	GROUND CONNECTION	GROUND CONNECTION
31	IR-RX	3V3	Input-Output	IR-RX	PL9/S-IR-RX
32	UART3-RX	3V3	Input-Output	UART3-RX	PD24/TWI2-SDA/TS3-SYNC/UART3-RX/JTAG-CK
33	UART3-TX	3V3	Input-Output	UART3-TX	PD23/TWI2-SCK/TS3-ERR/UART3-TX/JTAG-MS
34	GND	0V	GROUND CONNECTION	GROUND CONNECTION
35	CPUX-URX	3V3	Input-Output	CPUX-URX	PH1/UART0-RX/PCM0-CLK/H-PCM0-CLK/SIM1-VPPPP
36	CPUX-UTX	3V3	Input-Output	CPUX-UTX	PH0/UART0-TX/PCM0-SYNC/H-PCM0-SYNC/SIM1-VPPEN
37	GND	0V	GROUND CONNECTION	GROUND CONNECTION
38	PWRON		Input	POWER ON/OFF KEY
39	RECOVERY		Input-Output	FUNCTION KEY	PL2/S-UART-TX
40	UBOOT		Input	UPGRADE KEY
41	AP-RESET		Input	RESET KEY
42	GND	0V	GROUND CONNECTION	GROUND CONNECTION
43	HHPD	5V	Input	HHPD
44	HSCL	5V	Input-Output	HSCL	PH8/HSCL
45	HSDA	5V	Input-Output	HSDA	PH9/HSDA
46	HCEC	3V3	Input	HCEC	PH10/HCEC
47	GND	0V	GROUND CONNECTION	GROUND CONNECTION
48	HTXCN		Output	HTXCN
49	HTXCP		Output	HTXCP
50	GND	0V	GROUND CONNECTION	GROUND CONNECTION
51	HTX0N		Output	HTX0N
52	HTX0P		Output	HTX0P
53	GND	0V	GROUND CONNECTION	GROUND CONNECTION
54	HTX1N		Output	HTX1N
55	HTX1P		Output	HTX1P
56	GND	0V	GROUND CONNECTION	GROUND CONNECTION
57	HTX2N		Output	HTX2N
58	HTX2P		Output	HTX2P
59	USB0-DRVVBUS	3V3	Input-Output	USB DRVVBUS	PL5/S-JTAG-CK
60	PL7	3V3	Input-Output	PL7	PL7/S-JTAG-DI
61	PH2	3V3	Input-Output	PH2
62	GND	0V	GROUND CONNECTION	GROUND CONNECTION
63	USB3-DP		Input-Output	USB3-DP
64	USB3-DM		Input-Output	USB3-DM
65	GND	0V	GROUND CONNECTION	GROUND CONNECTION
66	USB0-DP		Input-Output	USB0-DP
67	USB0-DM		Input-Output	USB0-DM
68	GND	0V	GROUND CONNECTION	GROUND CONNECTION
69	USB1-DP		Input-Output	USB1-DP
70	USB1-DM		Input-Output	USB1-DM
71	GND	0V	GROUND CONNECTION	GROUND CONNECTION
72	USB1-SSTXP		Output	USB1-SSTXP
73	USB1-SSTXN		Output	USB1-SSTXN
74	GND	0V	GROUND CONNECTION	GROUND CONNECTION
75	USB1-SSRXP		Input	USB1-SSRXP
76	USB1-SSRXN		Input	USB1-SSRXN
77	GND	0V	GROUND CONNECTION	GROUND CONNECTION
78	VCC18-RTC		NC	NC	NC
79	GND	0V	GROUND CONNECTION	GROUND CONNECTION
80	GND	0V	GROUND CONNECTION	GROUND CONNECTION
81	PS	5V	Input	MAIN POWER INPUT	POWER IN 3.4V~5.5V MAX 2W
82	PS	5V	Input	MAIN POWER INPUT	POWER IN 3.4V~5.5V MAX 2W
83	GND	0V	GROUND CONNECTION	GROUND CONNECTION
84	PCIE-TXP		Output	PCIE-TXP
85	PCIE-TXM		Output	PCIE-TXM
86	PCIE-RXP		Input	PCIE-RXP
87	PCIE-RXM		Input	PCIE-RXM
88	PCIE-REF-CLKP		Output	PCIE-CLKP
89	PCIE-REF-CLKM		Output	PCIE-CLKM
90	GND	0V	GROUND CONNECTION	GROUND CONNECTION
91	EPHY-TXP		Output	EPHY-TXP
92	EPHY-TXN		Output	EPHY-TXN
93	EPHY-RXP		Input	EPHY-RXP
94	EPHY-RXN		Input	EPHY-RXN
95	EPHY-LINK		Output	EPHY-LINK
96	EPHY-SPD		Output	EPHY-SPD
97	GND	0V	GROUND CONNECTION	GROUND CONNECTION
98	LINEOUTL		Output	LINEOUTL
99	LINEOUTR		Output	LINEOUTR
100	PH6HP_DET	3V3	Input-Output	HP_DET	PH6/SPI1-MISO/SPDIF-IN/TWI1-SDA/SIM1-DET
101	MUTE		Input-Output	MUTE	PL6/S-JTAG-DO
102	GND	0V	GROUND CONNECTION	GROUND CONNECTION
103	MIC1N		Input	MIC1N
104	MIC1P		Input	MIC1P
105	GND	0V	GROUND CONNECTION	GROUND CONNECTION
106	MIC2N		Input	MIC2N
107	MIC2P		Input	MIC2P
108	MBIAS		Output	MBIAS
109	GND	0V	GROUND CONNECTION	GROUND CONNECTION
110	TV-OUT		Output	TV-OUT
111	GND	0V	GROUND CONNECTION	GROUND CONNECTION
112	SPDIF-OUT		Output	SPDIF-OUT	PH7/SPDIF-OUT
113	GND	0V	GROUND CONNECTION	GROUND CONNECTION
114	SDC0-DET	3V3	Input-Output	SDC0-DET	PF6
115	SDC0-D1	3V3	Input-Output	SDC0-D1	PF0/SDC0-D1/JTAG-MS1
116	SDC0-D0	3V3	Input-Output	SDC0-D0	PF1/SDC0-D0/JTAG-DI1
117	GND	0V	GROUND CONNECTION	GROUND CONNECTION
118	SDC0-CLK	3V3	Input-Output	SDC0-CLK	PF2/SDC0-CLK/UART0-TX
119	VCC-IO	3V3	Output	VCC-IO	POWER OUT 3.3V 200mA
120	SDC0-CMD	3V3	Input-Output	SDC0-CMD	PF3/SDC0-CMD/JTAG-DO1
121	SDC0-D3	3V3	Input-Output	SDC0-D3	PF3/SDC0-CMD/JTAG-DO1
122	SDC0-D2	3V3	Input-Output	SDC0-D2	PF5/SDC0-D2/JTAG-CK1
123	GND	0V	GROUND CONNECTION	GROUND CONNECTION
124	LINK-LED	3V3	Input-Output	LINK-LED	PL3/S-UART-RX
125	GND	0V	GROUND CONNECTION	GROUND CONNECTION
126	BT-WAKE-AP	1V8	Input-Output	BT-WAKE-AP	PM1
127	AP-WAKE-BT	1V8	Input-Output	AP-WAKE-BT	PM2
128	BT-UART-CTS	1V8	Input-Output	BT-UART-CTS	PG8/UART1-RTS/PLL-STA-DB/SIM0-VPPEN
129	BT-UART-RTS	1V8	Input-Output	BT-UART-RTS	PG9/UART1-CTS/PLL-TEST-GPIO/SIM0-VPPPP
130	BT-UART-RX	1V8	Input-Output	BT-UART-RX	PG6/UART1-TX
131	BT-UART-TX	1V8	Input-Output	BT-UART-TX	PG7/UART1-RX
132	BT-REG-ON	1V8	Input-Output	BT-REG-ON	PM4
133	GND	0V	GROUND CONNECTION	GROUND CONNECTION
134	VCC-PG	1V8	Output	VCC-PG
135	AP-CK32KO	1V8	Output	AP-CK32KO	X32KFOUT
136	GND	0V	GROUND CONNECTION	GROUND CONNECTION
137	BT-PCM-CLK	1V8	Input-Output	BT-PCM-CLK	PG11/PCM2-CLK/H-PCM2-CLK/SIM0-CLK/BIST-RESULT0
138	BT-PCM-DOUT	1V8	Input-Output	BT-PCM-DOUT	PG13/PCM2-DIN/H-PCM2-DIN/SIM0-RST/BIST-RESULT2
139	BT-PCM-DIN	1V8	Input-Output	PG7/CSI0_D3	PG12/PCM2-DOUT/H-PCM2-DOUT/SIM0-DATA/BIST-RESULT1
140	BT-PCM-SYNC	1V8	Input-Output	BT-PCM-SYNC	PG10/PCM2-SYNC/H-PCM2-SYNC/SIM0-PWREN
141	GND	0V	GROUND CONNECTION	GROUND CONNECTION
142	WL-SDIO-D1	1V8	Input-Output	WL-SDIO-D1	PG3/SDC1-D1
143	WL-SDIO-D0	1V8	Input-Output	WL-SDIO-D0	PG2/SDC1-D0
144	WL-SDIO-D2	1V8	Input-Output	WL-SDIO-D2	PG4/SDC1-D2
145	WL-SDIO-D3	1V8	Input-Output	WL-SDIO-D3	PG5/SDC1-D3
146	WL-SDIO-CLK	1V8	Input-Output	WL-SDIO-CLK	PG0/SDC1-CLK
147	GND	0V	GROUND CONNECTION	GROUND CONNECTION
148	WL-SDIO-CMD	1V8	Input-Output	WL-SDIO-CMD	PG1/SDC1-CMD
149	WL-WAKE-AP	1V8	Input-Output	WL-WAKE-AP	PM0
150	WL-REG-ON	1V8	Input-Output	WL-REG-ON	PM3
151	BT-WIFI-ON	1V8	Input-Output	BT-WIFI-ON	PL8/S-PWM0
152	GND	0V	GROUND CONNECTION	GROUND CONNECTION
153	LCD0-CLK	3V3	Input-Output	LCD0-CLK	PD18/LCD0-CLK/TS2-ERR/DMIC-DATA3
154	GND	0V	GROUND CONNECTION	GROUND CONNECTION
155	LCD0-DE	3V3	Input-Output	LCD0-DE	PD19/LCD0-DE/TS2-SYNC/UART2-TX/MDC
156	LCD0-VSYNC	3V3	Input-Output	LCD0-VSYNC	PD21/LCD0-VSYNC/TS2-D0/UART2-RTS
157	LCD0-HSYNC	3V3	Input-Output	LCD0-HSYNC	PD20/LCD0-HSYNC/TS2-DVLD/UART2-RX/MDIO
158	GND	0V	GROUND CONNECTION	GROUND CONNECTION
159	LCD0-D7	3V3	Input-Output	LCD0-D7	PD5/LCD0-D7/TS0-D1/CSI-D1/RGMII-RXCTL/RMII-CRS-DV
160	LCD0-D6	3V3	Input-Output	LCD0-D6	PD4/LCD0-D6/TS0-D0/CSI-D0/RGMII-RXCK/RMII-NULL
