General Description
    Orange Pi 5 Plus uses Rockchip RK3588 8-core 64-bit processor, quad-core A76+quad-core A55, with 8nm process design, up to 2.4GHz main frequency, integrated ARM Mali-G610, built-in 3D GPU, compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.2 and Vulkan 1.2; embedded NPU supports INT4/INT8/INT16/FP16 mixed computing, with up to 6Tops of computing power, which can meet the edge computing needs of most end devices; 4GB/8GB/16GB LPDDR4/4x memory and eMMC socket, which can be connected with 16GB/32GB/64GB/128GB/256GB eMMC module. Orange Pi 5 Plus supports Orange Pi OS, the official operating system developed by Orange Pi, as well as Android 12, Debian 11, Ubuntu 22.04 and other operating systems.

Features

General Parameters

Dimension	100mmL*75mmW*20mmH
Connection Mode	Board To Board
CPU	• 8-core 64-bit processor • 4 x Cortex-A76(2.4GHz), 4 x Cortex-A55(1.8GHz) and separate NEON co-processors
GPU	Mali-G610
Memory	4GB/8GB/16GB （LPDDR4/4x）
Storage	MicroSD card slot: up to 128GB eMMC socket: 16GB/32GB/64GB/128GB/256GB eMMC module can be attached
Power Management	RK806-1
Supply Voltage	5.0V 4A
Operating System	Orange Pi OS、Android12、Debian11、Ubuntu22.04
Operating Temperature	-10°C to +75°C

Absolute Maximum Ratings

Electrical Characteristics

Functional Block Diagram

SoC	Rockchip RK3588 (8nm LP process)
CPU	• 8-core 64-bit processor
	• 4 x Cortex-A76(2.4GHz), 4 x Cortex-A55(1.8GHz) and separate NEON co-processors
GPU	• Arm Mali-G610
	• Built-in 3D GPU
	• Compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.2 and Vulkan 1.2
NPU	Embedded NPU supports INT4/INT8/INT16/FP16 mixed operation, with up to 6Tops computing power
PMU	RK806-1
RAM	4GB/8GB/16GB （LPDDR4/4x）
Memory	• QSPI Nor FLASH: 16MB/32MB
	• MicroSD card slot: up to 128GB
	• eMMC socket: 16GB/32GB/64GB/128GB/256GB eMMC module can be attached
	• M.2 2280 slot for NVMe SSDs (PCIe 3.0 x4) up to 2,000 MB/s
USB	USB3.0 × 2
	USB2.0 × 2
	Type-C ×1
Video	• 2x HDMI 2.1 out up to 8k@60FPS
	• 1x Type-C with DP TX 1.4A，up to 8K@30FPS
	• 1x HDMI in with up to 4K@60FPS
	• 1 x MIPI DSI TX 4 Lane，up to 4K @60Hz
TP interface	1x 6Pin FPC socket
Camera	• 1XMIPI CSI 4 Lane
Audio	CODEC:ES8388
	• 1xAudio 3.5mm jack with mic
	• 1xMIC In
	• 1xHDMI 2.1 eARC
	• 1xSPK
Ethernet	2xPCIe 2.5G LAN（RTL8125BG)
Expansion Port	40Pin dual row pins with the following multiplexing functions: UART, I2C, SPI, CAN, I2S, PDM, AUDDSM, SDIO, PWM, GPIO
PCIe M.2 M-KEY Socket	M.2 connector M key (bottom) for NVMe with PCIe 3.0 x4 lanes 2280 SSD
PCIe M.2 E-KEY Socket	M.2 connector E key (top) for connectivity with PCIe 2.0 x1/PCM/UART/USB2.0,2230 Wi-Fi6 /BT supported
Button	1×MaskROM key
	1xRecovery
	1×on/off key
Power Source	Support Type-C power supply, 5V@4A
IR receiver	1x IR receiver tube
LED	RGB LED side light
FAN	5V FAN
RTC	2Pin: RTC backup battery
Debugging	3Pin debug serial port (UART)
Supported OS	Orangepi OS（Droid）、Orangepi OS（Arch）、Ubuntu22.04、Debian11、Android12

Interface Description

Functional Pin Description

Key IC
    Rockchip RK3588

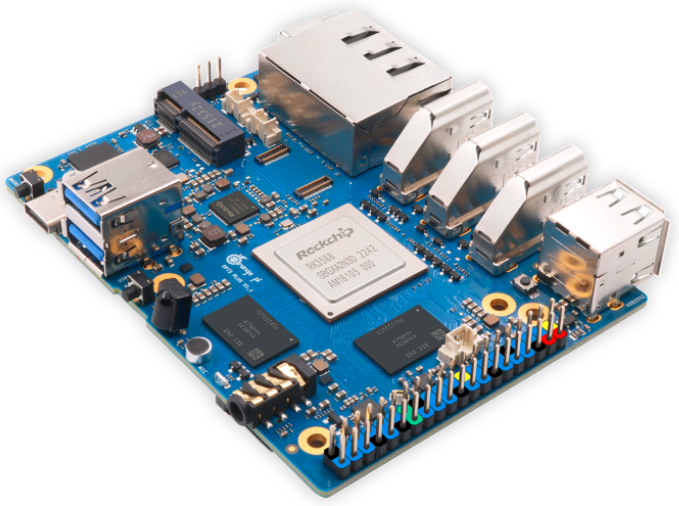

Appearance And Structure
